INSERTING DRILLING MACHINE - HG

INSERTING DRILLING MACHINE - HG

INSERTING DRILLING MACHINE - HG

AUTOMATIC DRILLING AND INSERTING MACHINE FOR HINGES AND CABINET FITTINGS

INSERTING DRILLING MACHINE - HG - Description:

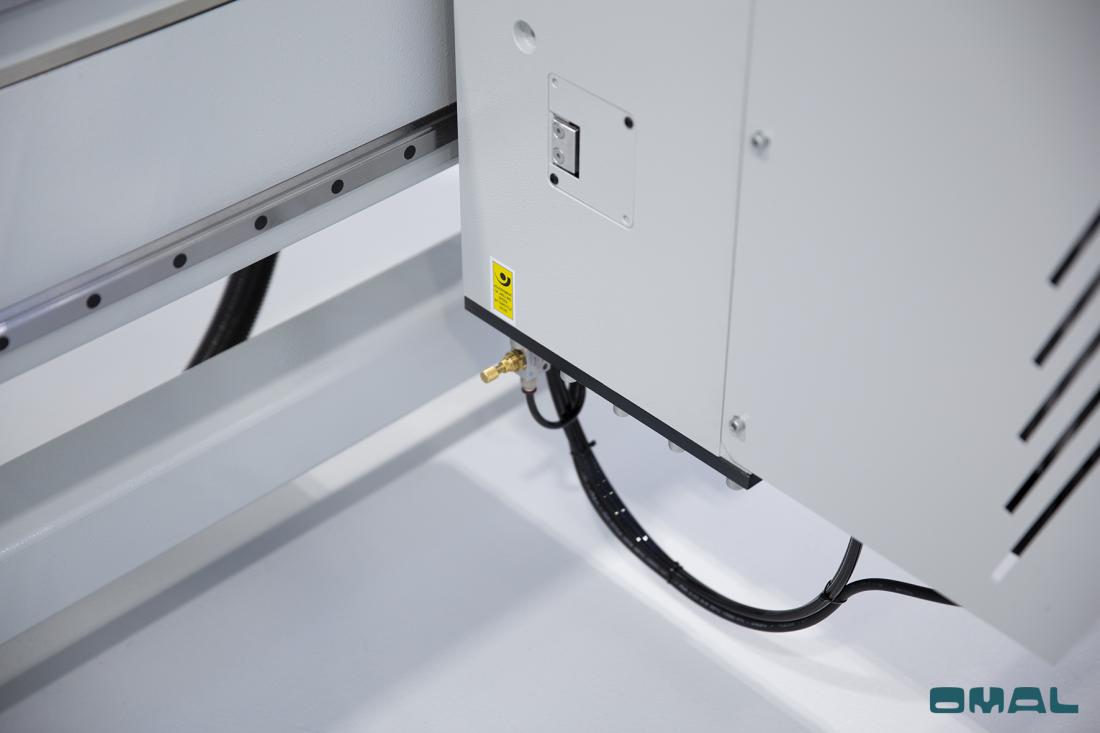

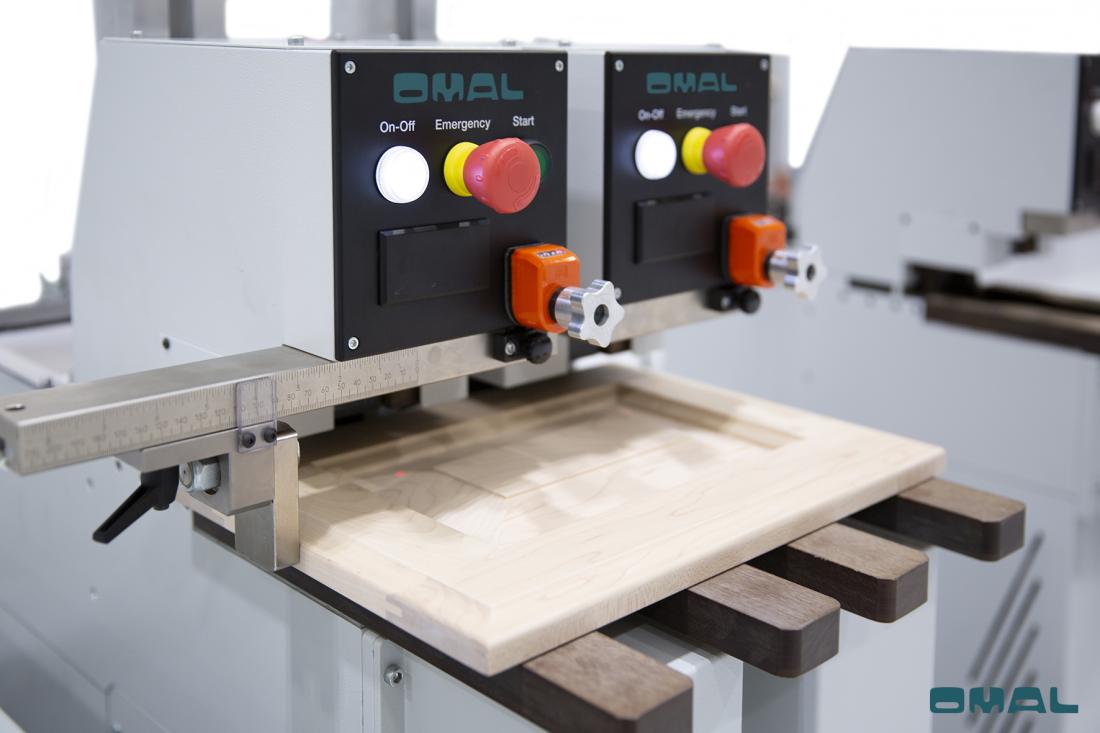

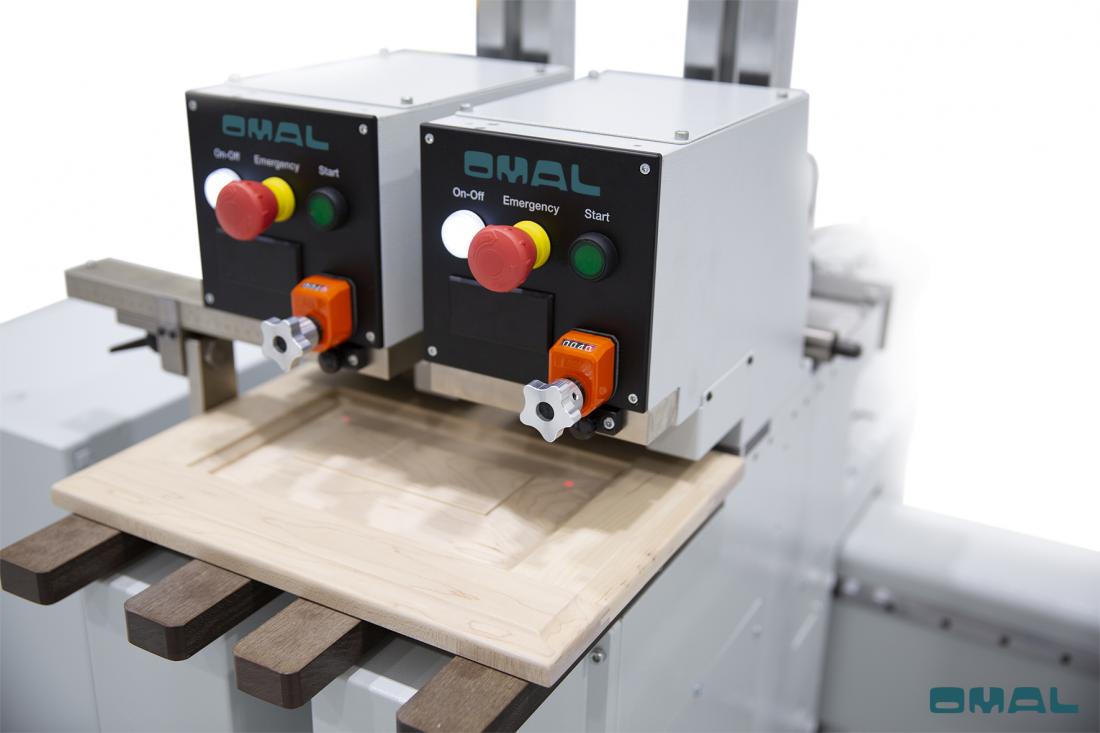

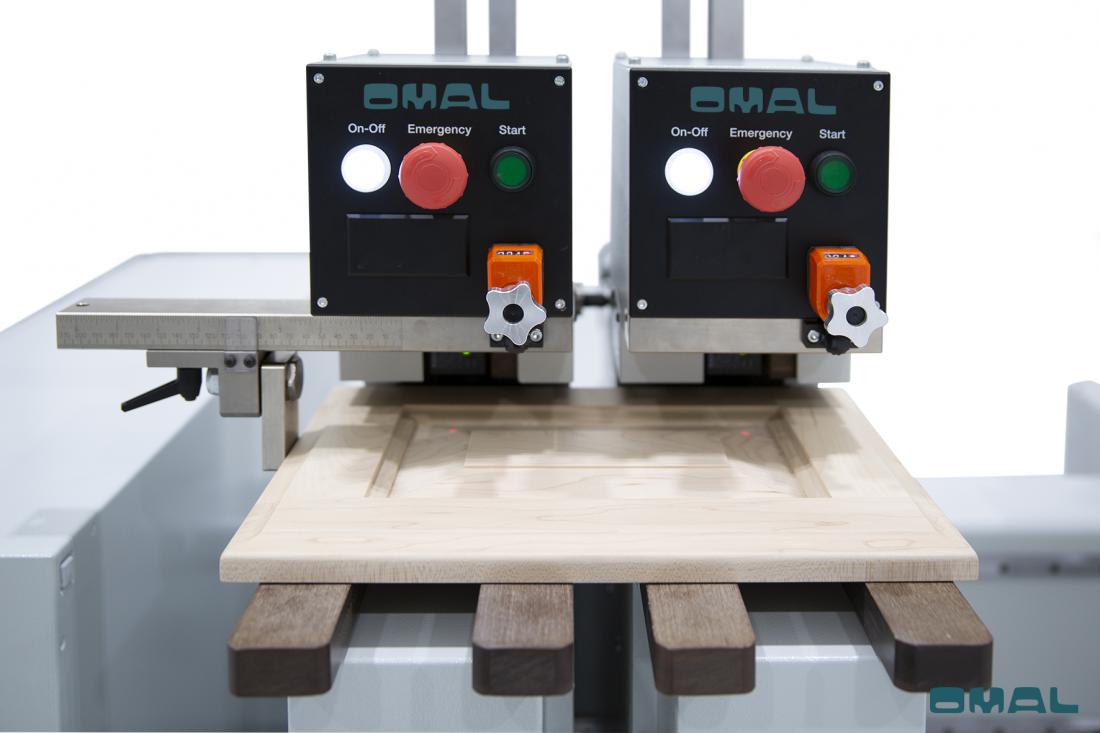

HG is designed for automatic drilling and hinge or other hardware insertion such as Rafix.

Automatic cycle which eliminates the heavy workload for the operator. The insertion is performed from the bottom and each head is equipped with a quick change magazine for the hinges. This range of machines is available with two up to five heads.

The positioning of the heads is manual with the help of an electronic display. Drilling and insertion works from the bottom and the complete cycle is approximately four seconds.

  • Increased efficiency with high speed of working cycle and flexibility;
  • manual positioning with digital readout for perfect accuracy;
  • ideal solution for just in time production or large batches;
  • Machine configuration with two up to five heads;
  • electronic display of head position;
  • 1500 mm working field or option of 2200 mm;
  • pneumatic valve for easy and quick lock/unlock of the heads;
  • digital indicator for K adjustment;
  • heavy duty tilt stop on a scale in millimeters or inches, built with large bearing for long lasting high precision;
  • quick change of hinge hopper;
  • highly efficient dust extraction;
  • heavy steel frame and head guide system on high precision prismatic guides.
  • Panel lenght - 1500 / 2200 mm
  • Panel tickness 10-40 mm
  • Installed power - 5 / 6 / 7 /8  Kw (number of heads)
  • Compressed air (bar) - 7
  • Dust extraction hood - 100 x number of heads
  • Total weight - 800 - 1100
