HBD1300 / 2500

HBD1300 / 2500

HBD1300 / 2500

HORIZONTAL BORE, GLUE, DOWEL AND HARDWARE INSERTION MACHINES

HBD1300 / 2500 - Description:

The HBD line is a numerical controlled machine for drilling, gluing, dowel or hardware insertion. The machine offers a full PC interface with 1300 or 2500 mm useful working field divided in zones for pendulum processing, indexable center and side fences. Heavy duty clamps for horizontal and vertical clamping. HBD line can be equipped also with single or multiple horizontal and vertical drills, Grooving saw and /or hardware inserters.

  • Increased efficiency with high speed of working cycle and flexibility;
  • CNC drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
  • easiness of assembling;
  • ideal solution for just in time production or large batches thanks to the minimum cycle time;
  • zero setup time and possibility to work with different boring pattern in different fields;
  • thanks to the different options available, it is possible to concentrate different edge machining operations on the same;
  • single side machine.

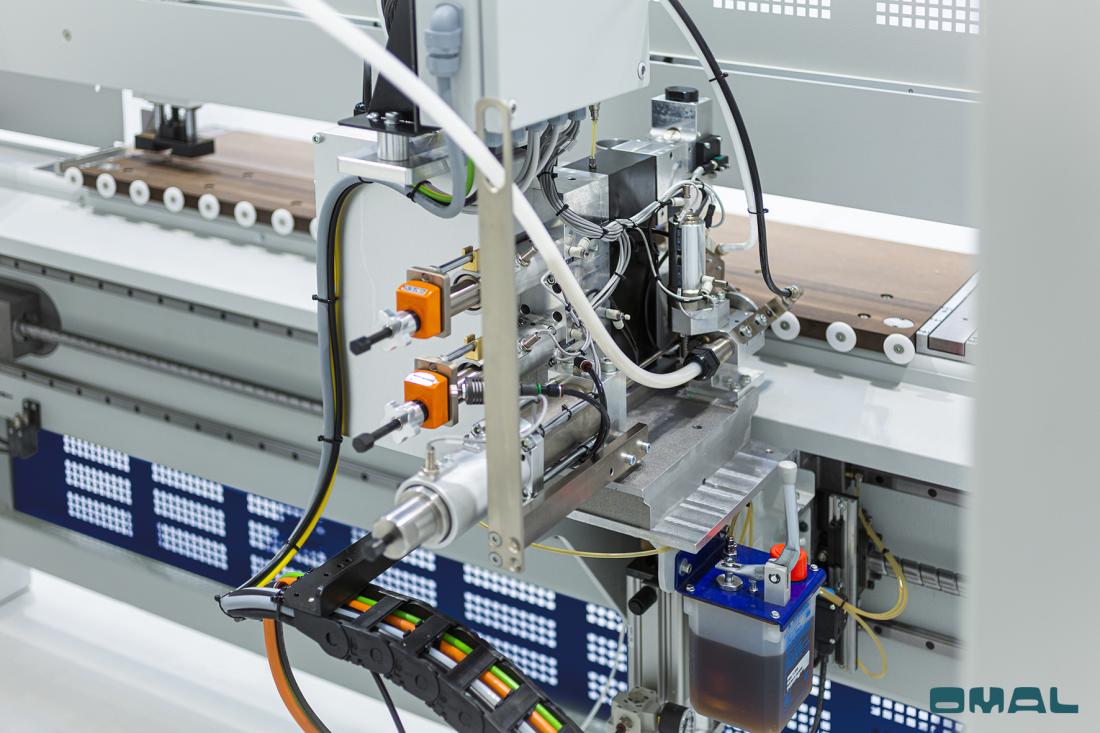

  • Single horizontal drill and dowel with option of multiple horizontal and vertical spindles;

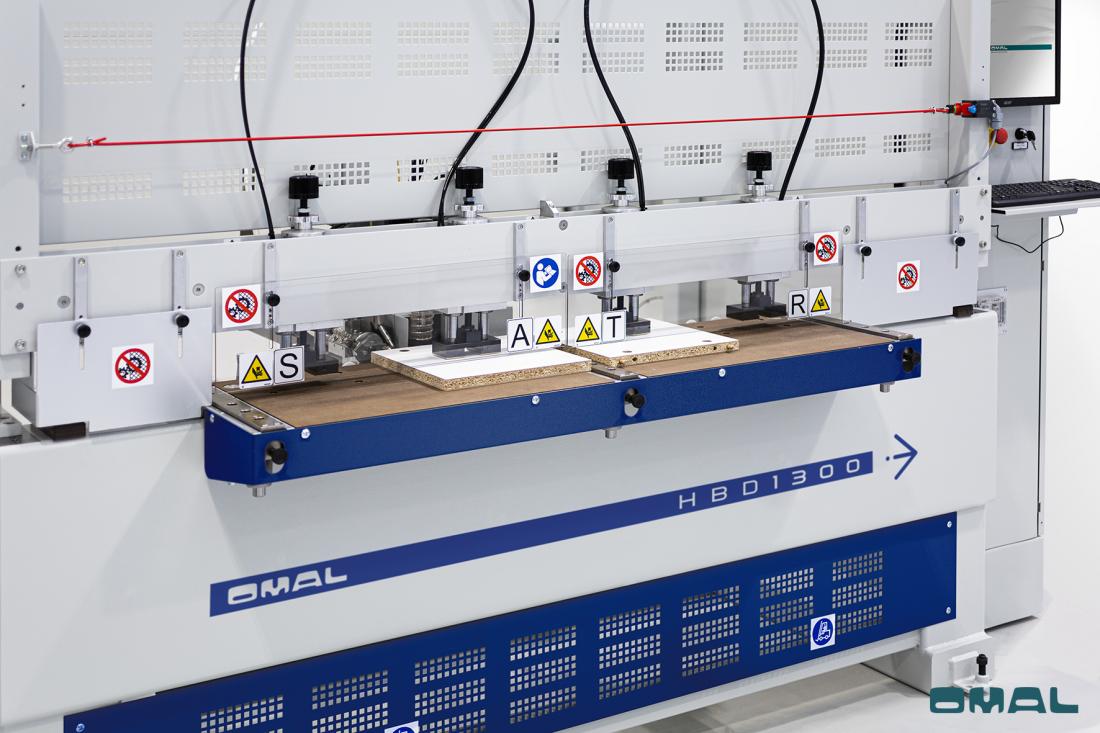

  • 1300 or 2500 mm work table with four fields, indexable central and side fences;
  • sure shot revolver system to guarantee the fastest cycle time (average one second) and extreme reliability;
  • powerful and user friendly Pc based Numerical Control;
  • heavy duty steel frame for maximum rigidity;

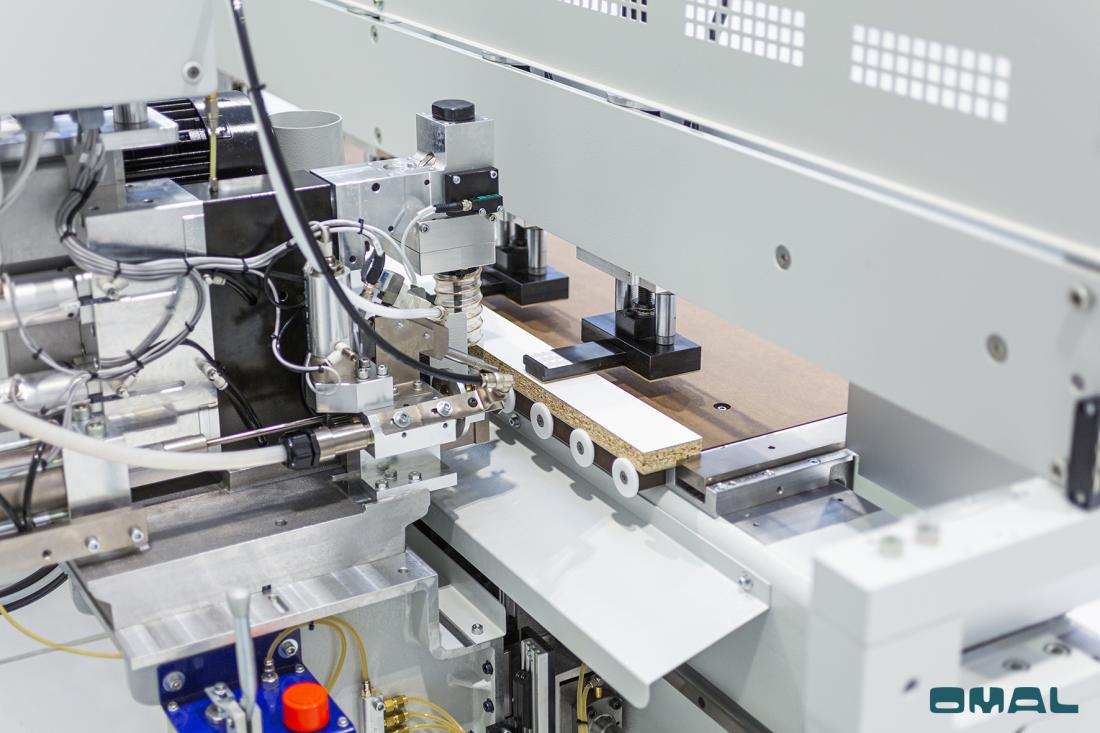

  • large phenolic table with robust double action clamps suitable also for delicate materials;
  • Horizontal and verrtical clamping of parts
  • barcoding and network ready;
  • laser for measuring the part and populate the program.
  • Panel lenght 20 - 1300 / 2500 mm
  • Panel width 50 - ∞
  • Panel tickness 10-40 mm
  • Installed power - 5 KW
  • Compressed air (bar) - min 7
  • Dust extraction hood - 60 mm (+ 80 mm only with vertical drilling)
  • Total weight - 1100 / 1500 Kg
