INSERT PEANUT
INSERT PEANUT
HORIZONTAL BORE AND PEANUT INSERTION, VERTICAL ROUTING FOR PEANUT SLOT ,DRILLING GLUING AND WOODEN DOWEL INSERTING MACHINE
INSERT PEANUT - Description:
The INSERT PENAUT is a Numerical Controlled machine specially developed for drilling and inserting PEANUT plastic hardware on the edge. The machine has the option to perform the vertical face routing with a mechanical copier for Peanut assembling. On request the machine can be equipped with drilling, gluing and wooden dowel insertion unit. The machine offers a Full Pc interface with 1300 mm useful working field divided in zones for pendulum processing, 4 reference stops are standard.
- Insert PEANUT offers a complete solution for assembling furniture with Peanut fitting.
- Cnc drilling and Peanut insertion for horizontal, vertical routing with mechanical copier for Peanut slot **
- increased efficiency with high speed of working cycle and flexibility
- easiness of assembling
- ideal solution for just in time production
- zero set up time and possibility to work with different boring pattern in different field
- machine can be used for Peanut 2 and 3
- possibility to concentrate on the same machine Peanut and wooden dowel insertion, routing for Peanut slot
** PTR
- Range of Peanut insertion machines made of 3 models (Insert 1300 PT / PTD / PTR) to fullfill any possible requirement from pure drilling and peanut insertion up to complete assembling solution

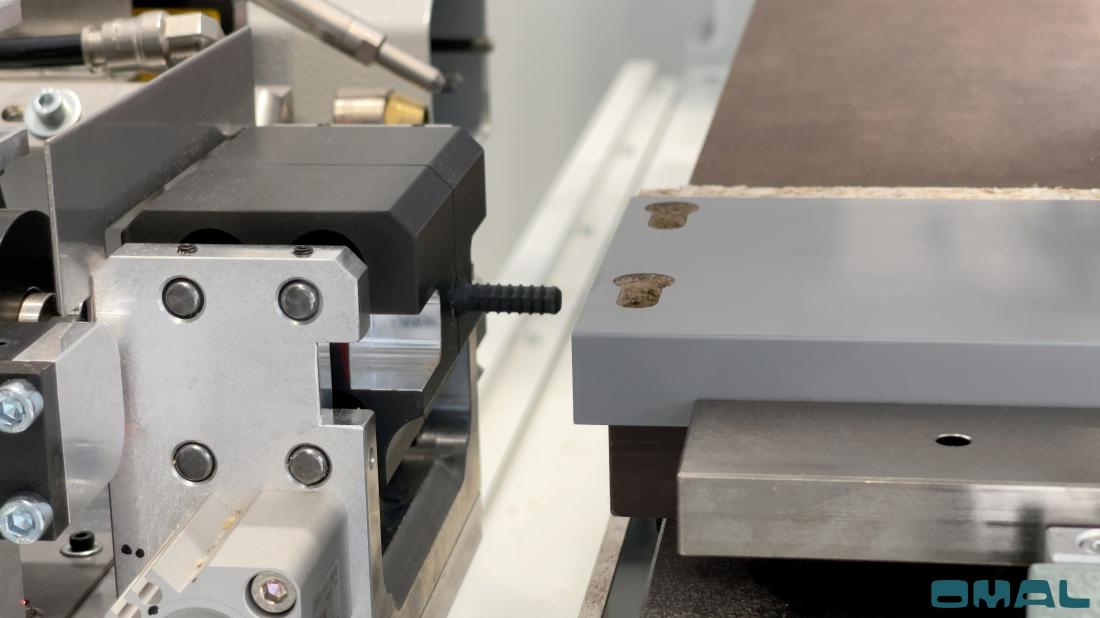

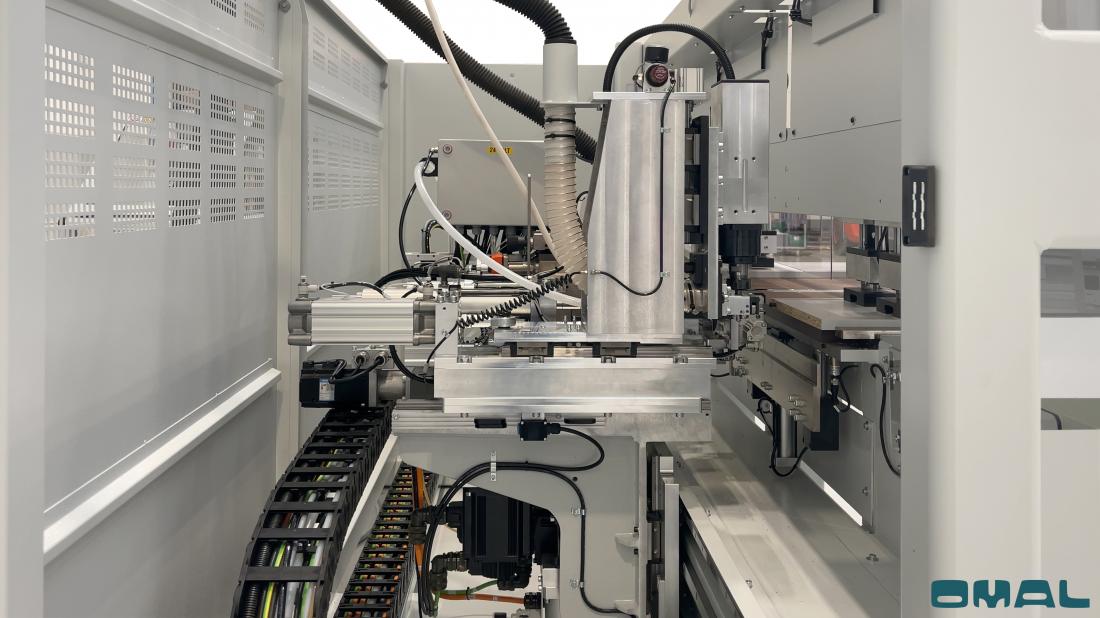

- Fully controlled 3 axis cnc machine with 2 horizontal drills, 1 Insertion unit for Peanut and one for wooden dowels *

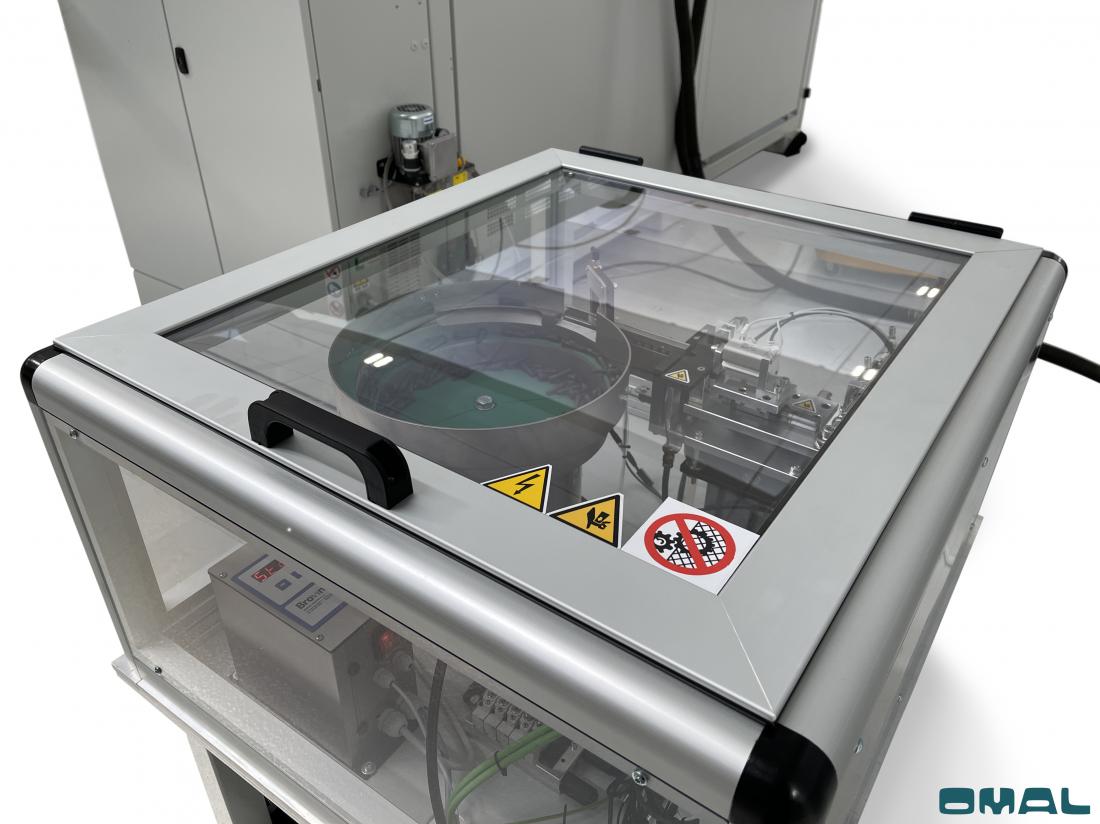

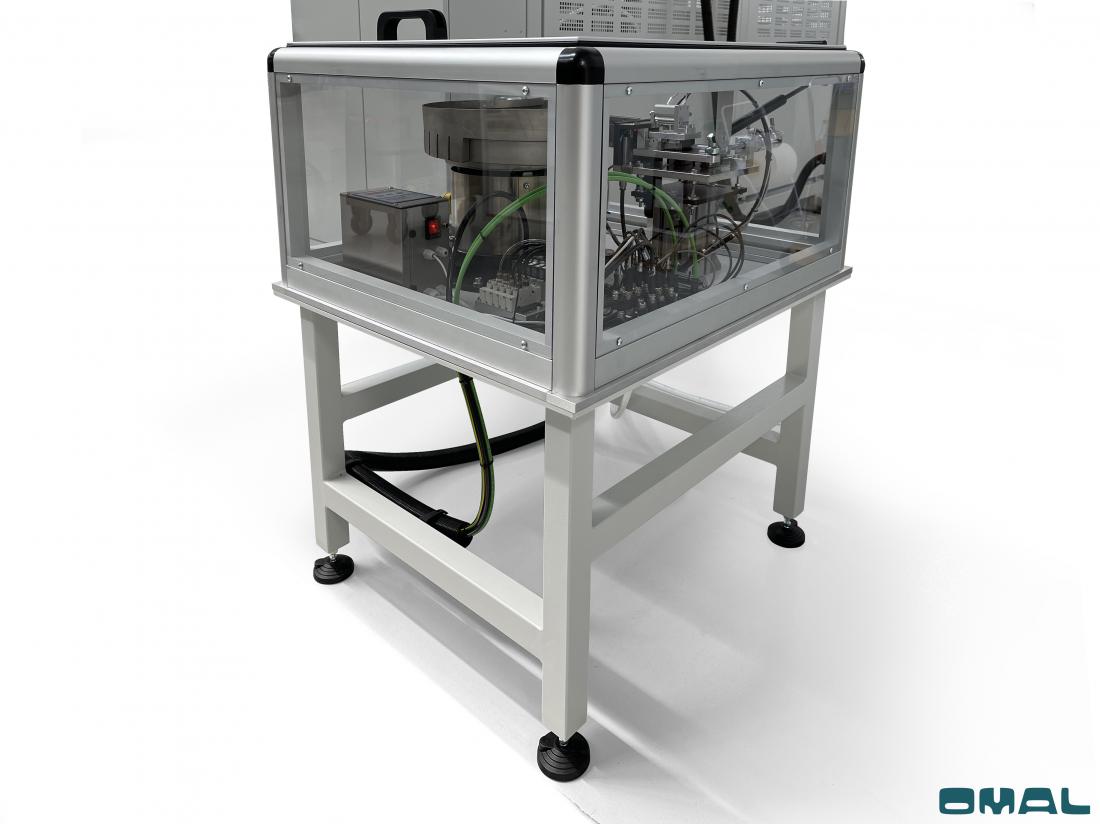

- N. 2 large Vibrators. Peanut vibrator with shooting system *

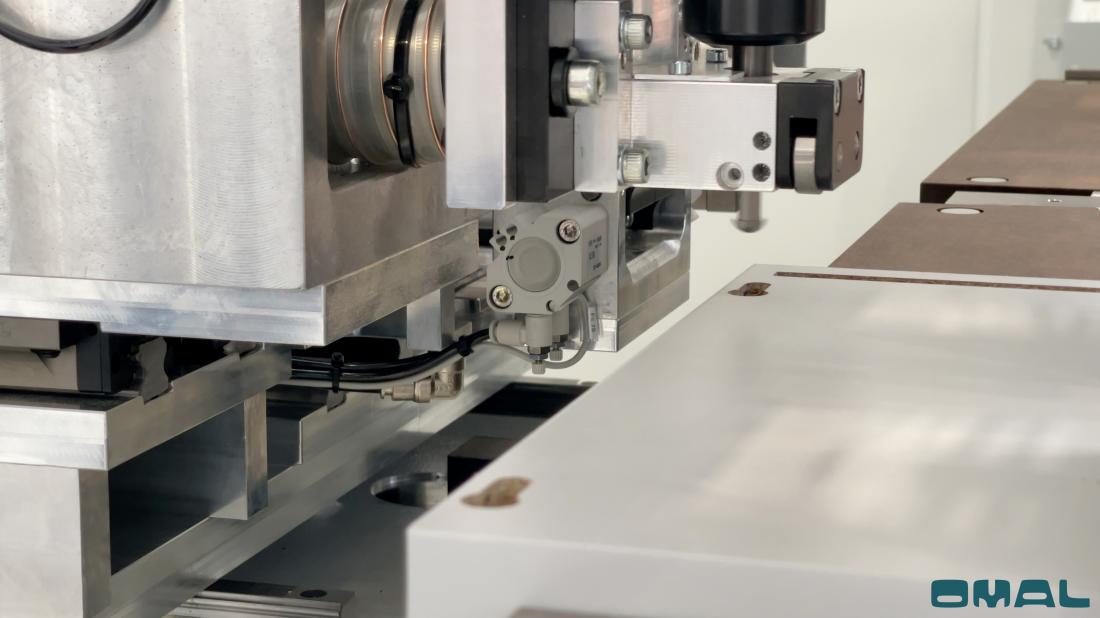

- 1,5 Kw router for vertical slot with mechanical copier to ensure perfect milling depth **
- 1300 mm work table with 4 fields, indexable central and side fences with open frame to machine parts up to 2600 mm
- large phenolic table with heavy duty double action Clamps to ensure perfect hold of the workpiece
- for wooden dowels SURE SHOT revolver system to guarantee the fastest cycle time (average 1 second) and extreme reliability *
- Powerfull and user friendly Pc based Numerical Control
- heavy duty steel frame for maximum rigidity
- laser for measuring the part and populate the program
* PTD+PTR
** PTR
- Panel lenght 20 - 1300 / 2600 mm
- Panel tickness 10-60 mm
- Installed power 7 kw
- Compressed air min 7 bar /250 NL/miz
- Dust extraction hood 60 + 60
- Total weigh 1600 kg
