LINEA RD

LINEA RD

DOUBLE SIDE HORIZONTAL DRILLING MACHINE, GLUE AND DOWEL INSERTION FOR NARROW PIECES AND RAILS

LINEA RD - Description:

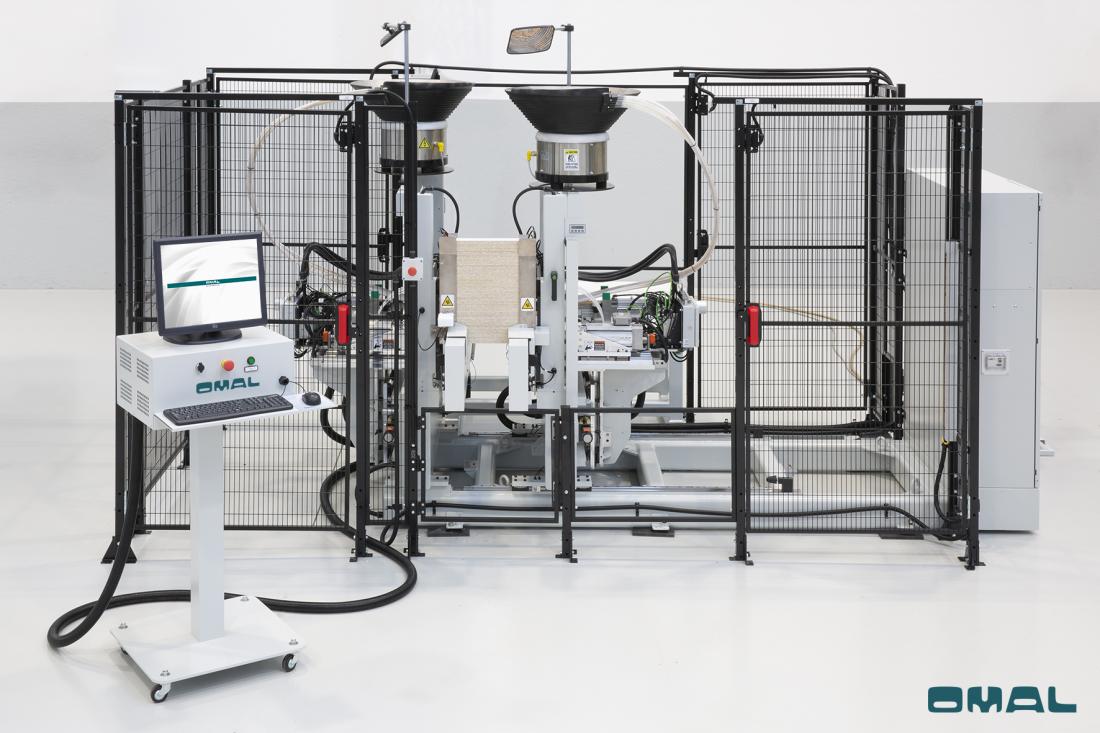

LINEA RD double side machine specially designed for high speed drilling and dowel or hardware insertion on narrow pieces edges. Rails hopper feeder for easy loading and option of returning device to load and off load from the same side with one operator. Average productivity of 12/15 panels per minute.

  • Easy and extremely fast processing of solid wood, particle board or MDF narrow pieces;
  • two working station, drilling / glue and dowel insertion, on each shoulder for maximum speed;
  • hopper feeder to load up to twenty parts at the time;
  • precise positioning of dowels for easy and high quality assembling;
  • heavy duty frame and design for maximum accuracy and reliability.
  • Double side through feed machine, each head equipped with two stations: first station for drilling with three or more spindles and second station multiple glue and dowel insertion units;

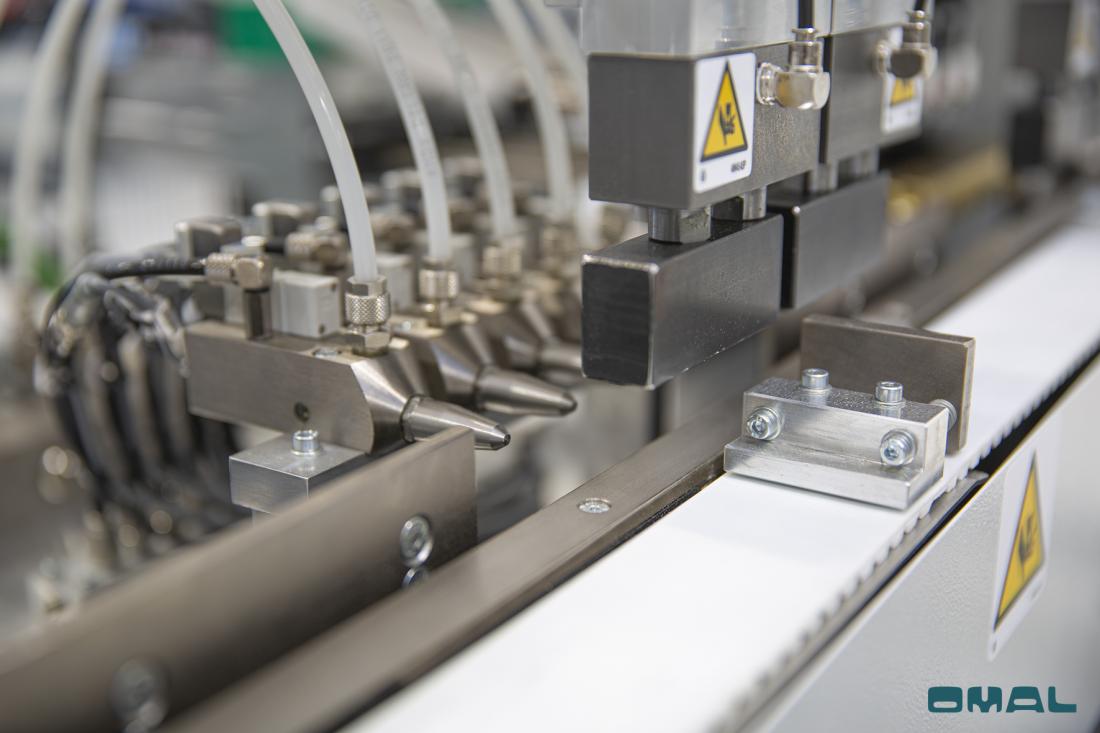

  • pieces movement by tiff belts and option of teflon device for painted or delicate material;
  • hopper feeder for narrow pieces;
  • panel return system to the operator (option);
  • machine specially designed for high speed drilling and doweling of large rail batches;
  • heavy duty steel frame for maximum rigidity and accuracy.
  • Panel length 210 - 1200 mm
  • Panel width 30-160
  • Panel thickness 16-40 mm
  • Installed power - 6 kw
  • Compressed air (bar) - 7
  • Dust extraction hood - 2 x 80 mm
  • Total weight - 1700 Kg





Any questions to LINEA RD?
For further information do not hesitate to contact us
