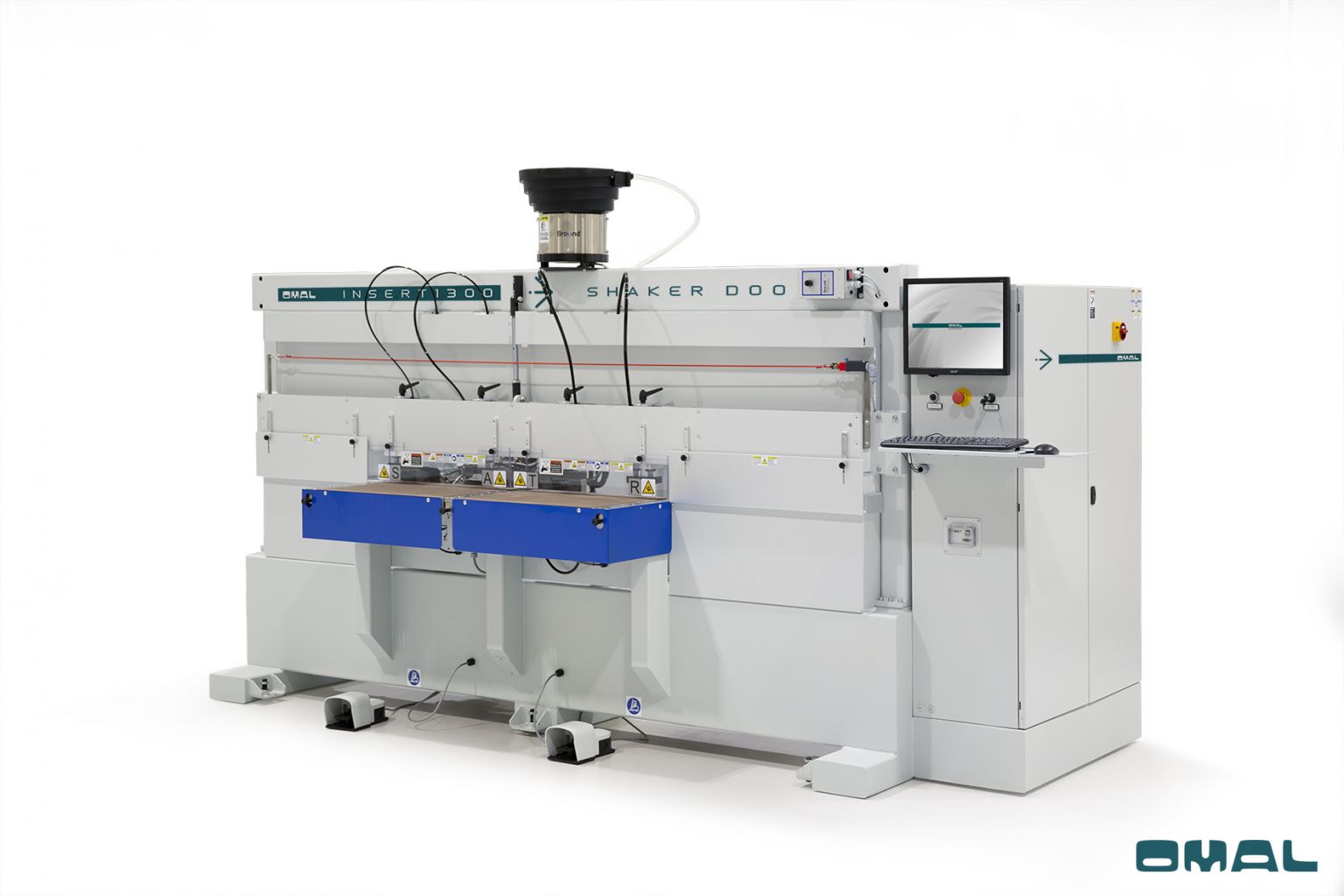

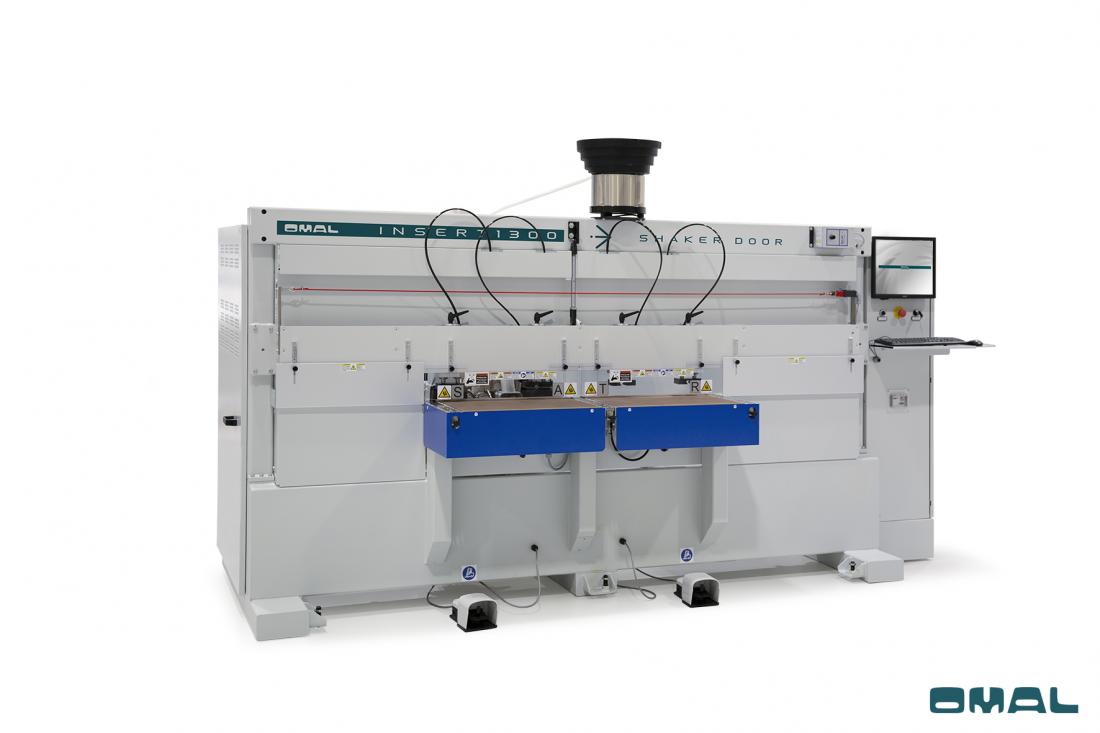

INSERT 1300 SHAKER DOORS - Boring machine

INSERT 1300 SHAKER DOORS - Boring machine

INSERT 1300 SHAKER DOORS - Boring machine

HORIZONTAL BORING MACHINE AND ROUTING FOR SHAKER DOORS, GLUE AND DOWEL INSERTION
INSERT 1300 SHAKER DOORS - Boring machine
INSERT 1300 SHAKER DOORS - Boring machine
INSERT 1300 SHAKER DOORS - Boring machine

INSERT 1300 SHAKER DOORS - Boring machine - Description:

The INSERT SHAKER DOORS is a numerical controlled machine specifically studied for the production of shaker doors. This model is equipped with a horizontal router for the slot inside the rails and blind slot of stiles, drilling, gluing and dowel insertion.

The machine offers a full PC interface with 1300 mm useful working field divided into four zones for pendulum processing, four reference stops are standard.

  • Possibility of concentrating milling drilling and dowel insertion of shaker doors in one single side machine;
  • the machine can also be used as a standard CNC drilling and dowel insertion machine for cabinets and furniture;
  • increased efficiency with high speed of working cycle and flexibility;
  • CNC drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
  • easiness of assembling;
  • ideal solution for just in time production or large batches thanks to the minimum cycle time;
  • zero setup time and possibility to work with different boring pattern in different fields;
  • thanks to the different options available, it is possible to concentrate different edge machining operations on the same;
  • single side machine.
  • Two horizontal drills for different diameters, glue and dowel insertion;
  • horizontal router;
  • CNC X and Z axis standard;
  • 1300 mm work table with four fields, option of indexable central and side fences;
  • sure shot revolver system to guarantee the fastest cycle time, average one second, and extreme reliability;
  • powerful and user friendly PC based numerical control;
  • heavy duty steel frame for maximum rigidity;
  • large bachelite table with robust clamps suitable also for delicate materials;
  • barcoding and ethernet ready;
  • laser for measuring the part and populate the program (option).
  • Panel length 20 - 1300
  • Panel width 50 - ∞
  • Panel thickness 10-40 mm
  • Installed power - 7 Kw
  • Compressed air (bar) - min 7
  • Dust extraction hood - 60 - 60 - 80 mm
  • Total weight - 1200 kg





Any questions to INSERT 1300 SHAKER DOORS - Boring machine?
For further information do not hesitate to contact us
OTHER MACHINES OF THE DRILLING AND DOWEL INSERTION

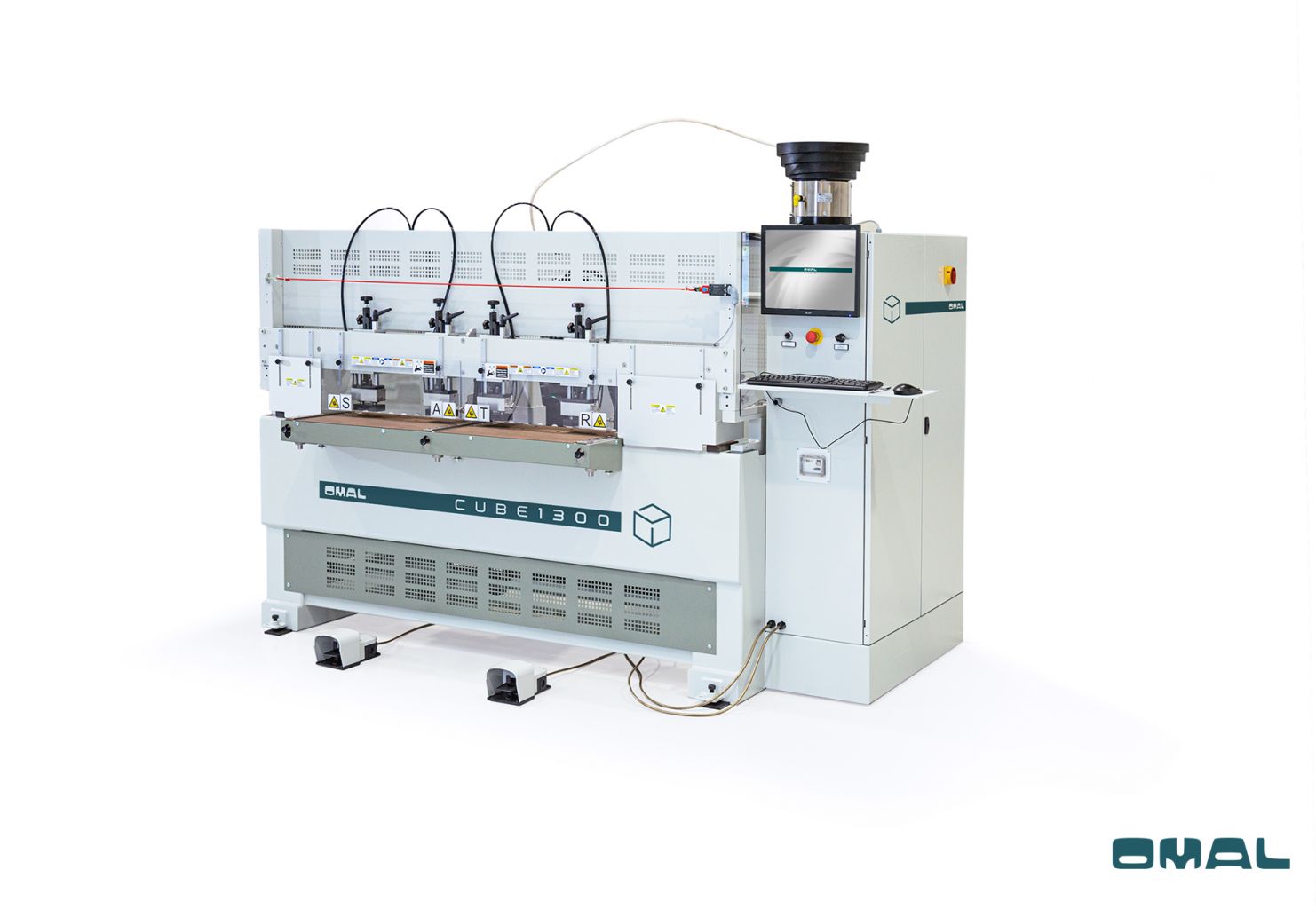

CUBE 1300 / 2500

CUBE 1300 / 2500

HORIZONTAL AND VERTICAL BORE, GLUE, DOWEL INSERTION
INSERT 1300 / 2500 - Dowel machine

INSERT 1300 / 2500 - Dowel machine

HORIZONTAL BORE, GLUE, DOWEL AND HARDWARE INSERTION MACHINES
INSERT 1300 / 2500 POCKET HOLE

INSERT 1300 / 2500 POCKET HOLE

HORIZONTAL BORE, GLUE, DOWEL INSERTION MACHINES, INCLINED MILLING FOR POCKET HOLE ASSEMBLY

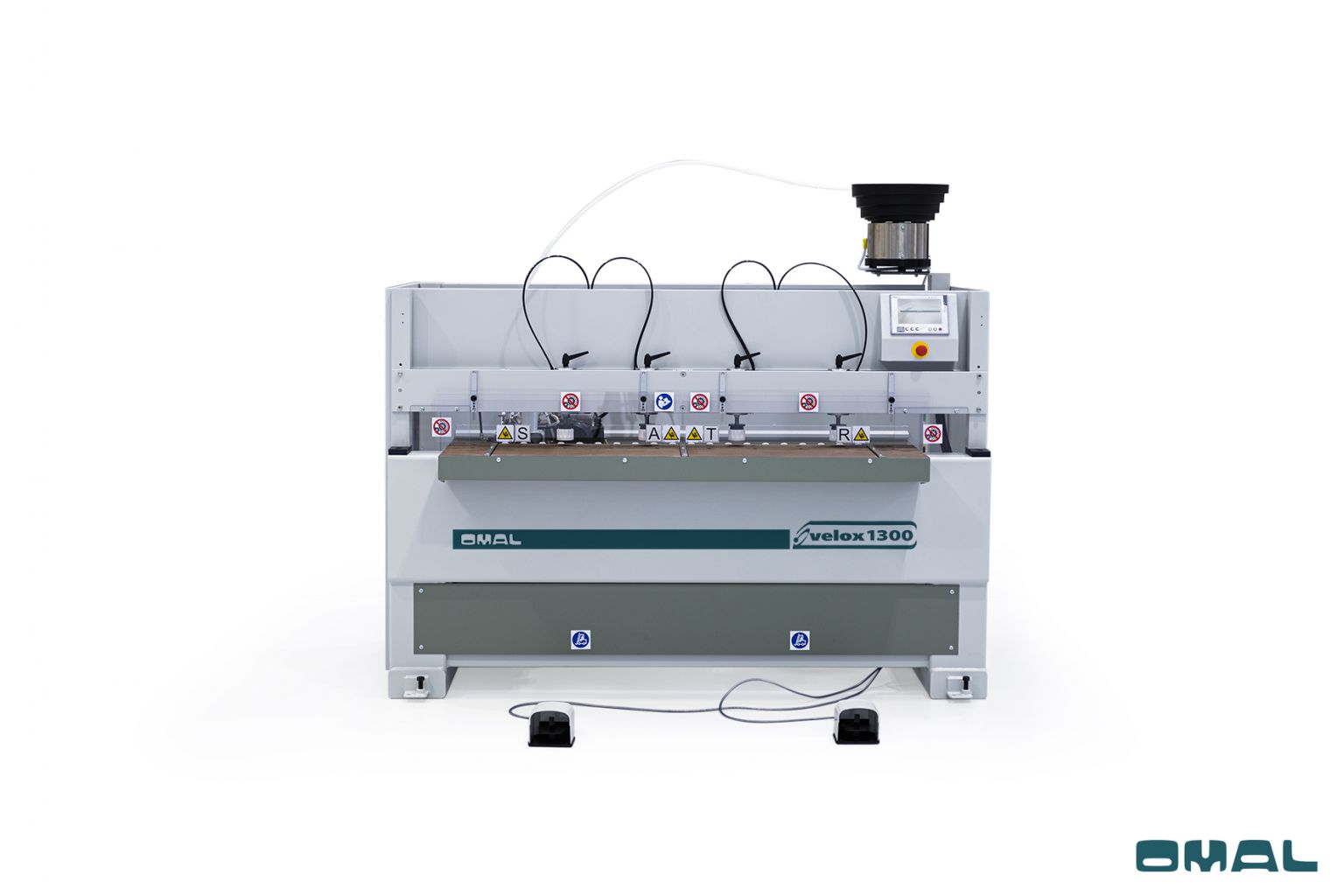

CNC bore and dowel - VELOX 1300
